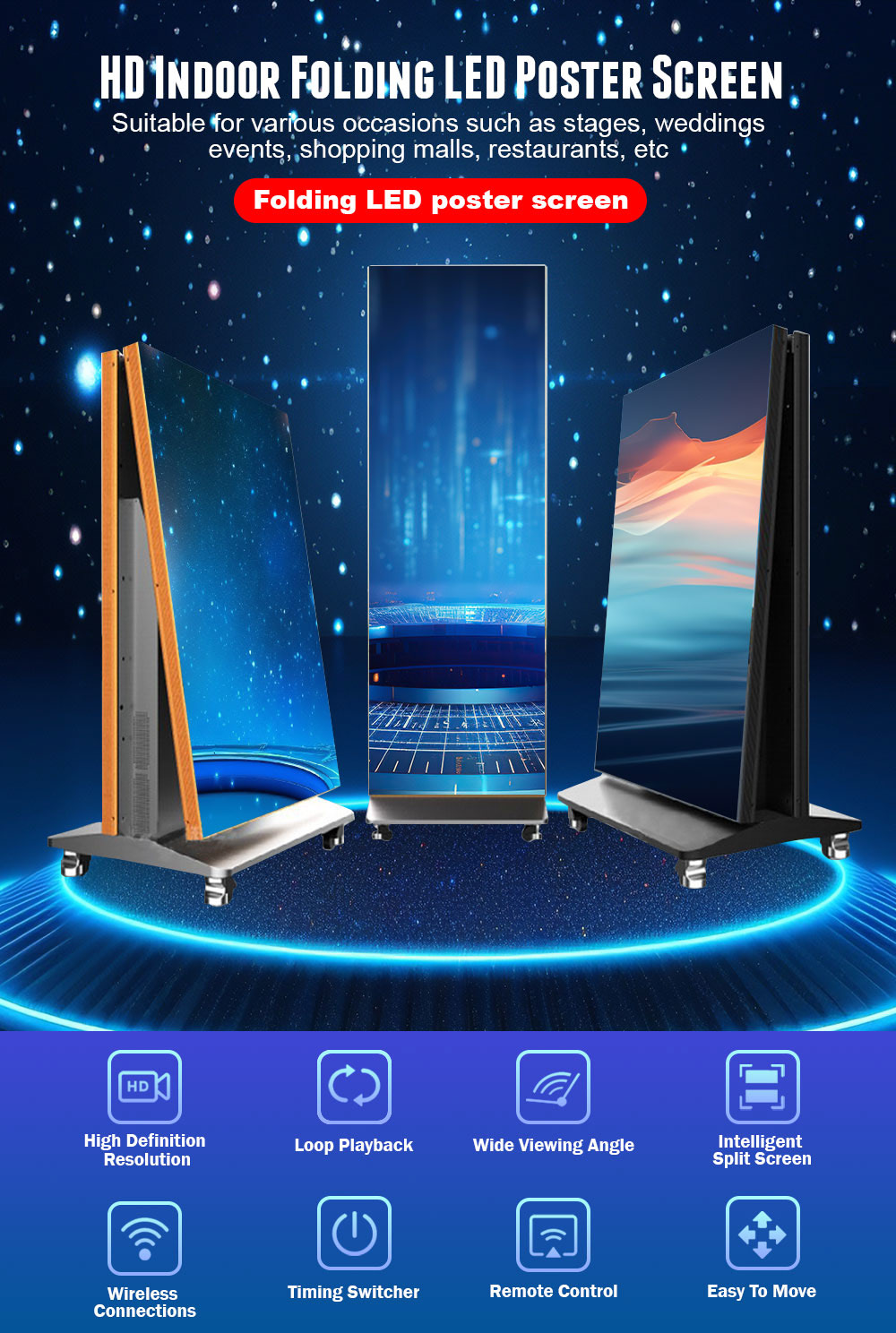

HD Indoor Folding LED Poster Screen.
Suitable for stages, weddings, events, shopping malls, restaurants and more — a portable, foldable LED poster display built for indoor advertising and event branding.
★ Flagship productAt a glance
Everything in one screen.
A portable, foldable indoor LED poster display built for stages, weddings, events, shopping malls and restaurants — sized to move in and set up in minutes.
- High Definition Resolution
- Loop Playback
- Wide Viewing Angle
- Intelligent Split Screen
- Wireless Connections
- Timing Switcher
- Remote Control
- Easy To Move
Two ways to deploy
Integrated or folding —
your choice.
Same screen, two builds: a slim integrated unit for a fixed look, or a folding frame that collapses down for transport between events.

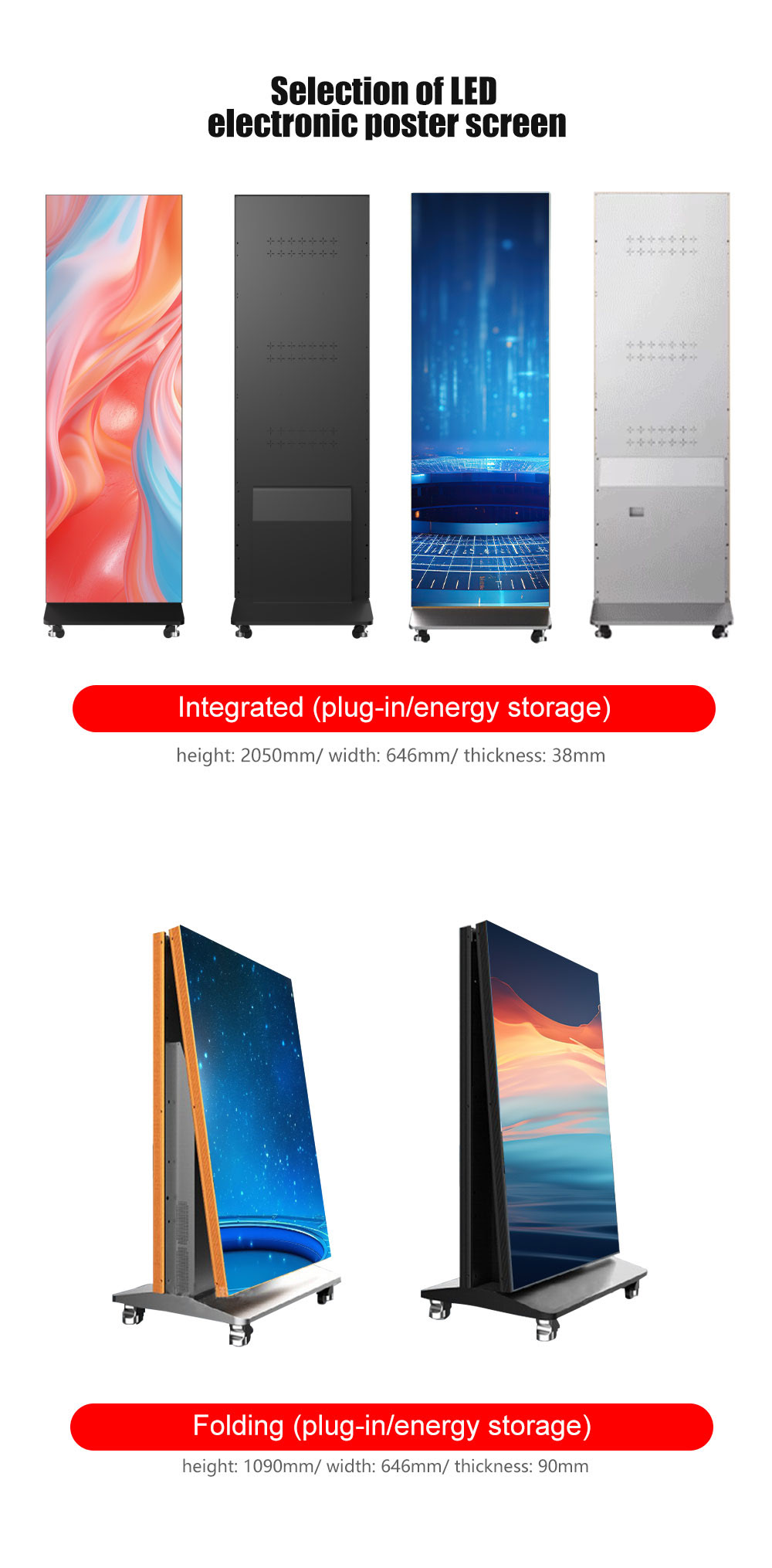

Integrated
2050 × 646 × 38mm
Folding
1090 × 646 × 90mm
Built to take a hit

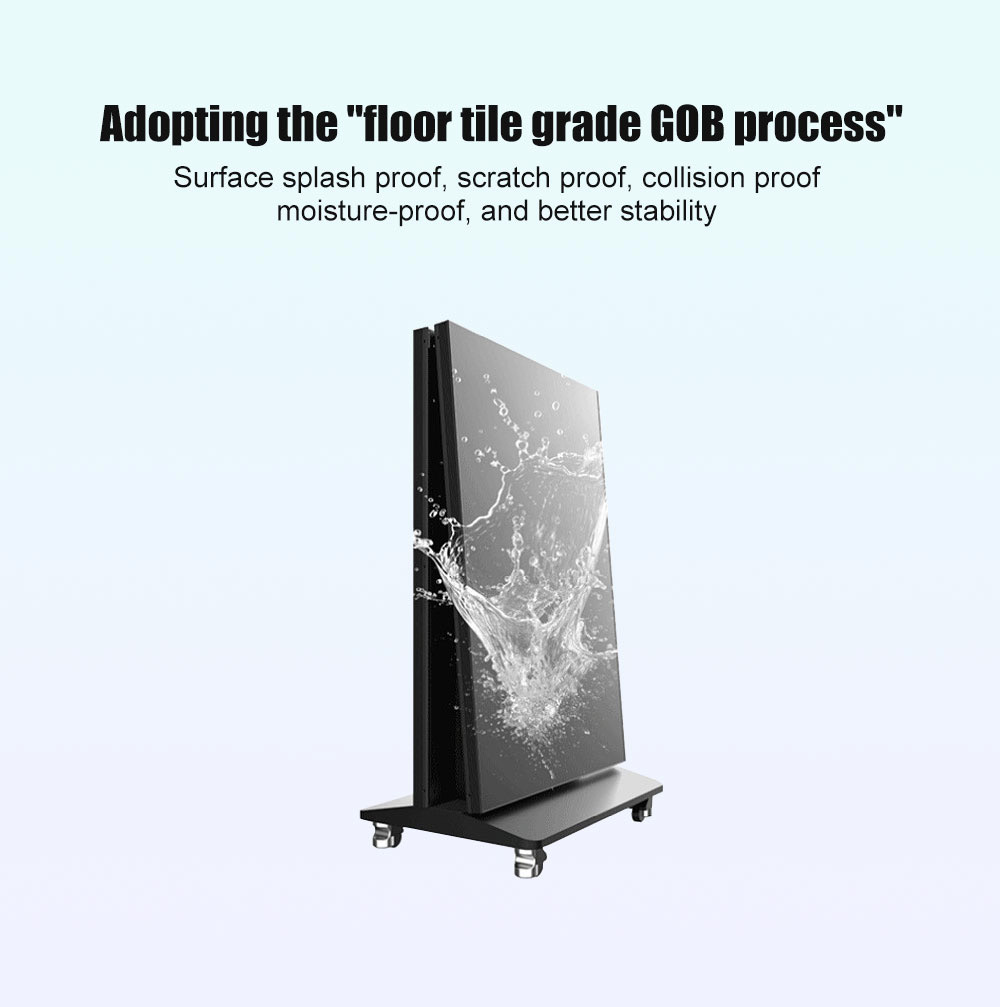

Floor-tile grade
GOB process.
Surface splash proof, scratch proof, collision proof and moisture-proof — engineered for better stability wherever it's placed.
Move it anywhere
Universal wheel design.
Comes with 4 swivel wheels for smooth, fast 360° movement — no extra crew needed to reposition it mid-event.
Scale it up
Seamless splicing
across multiple units.
Run it as a single screen, or splice several units together into one large seamless display for a wider range of layouts and venues.
Control it your way

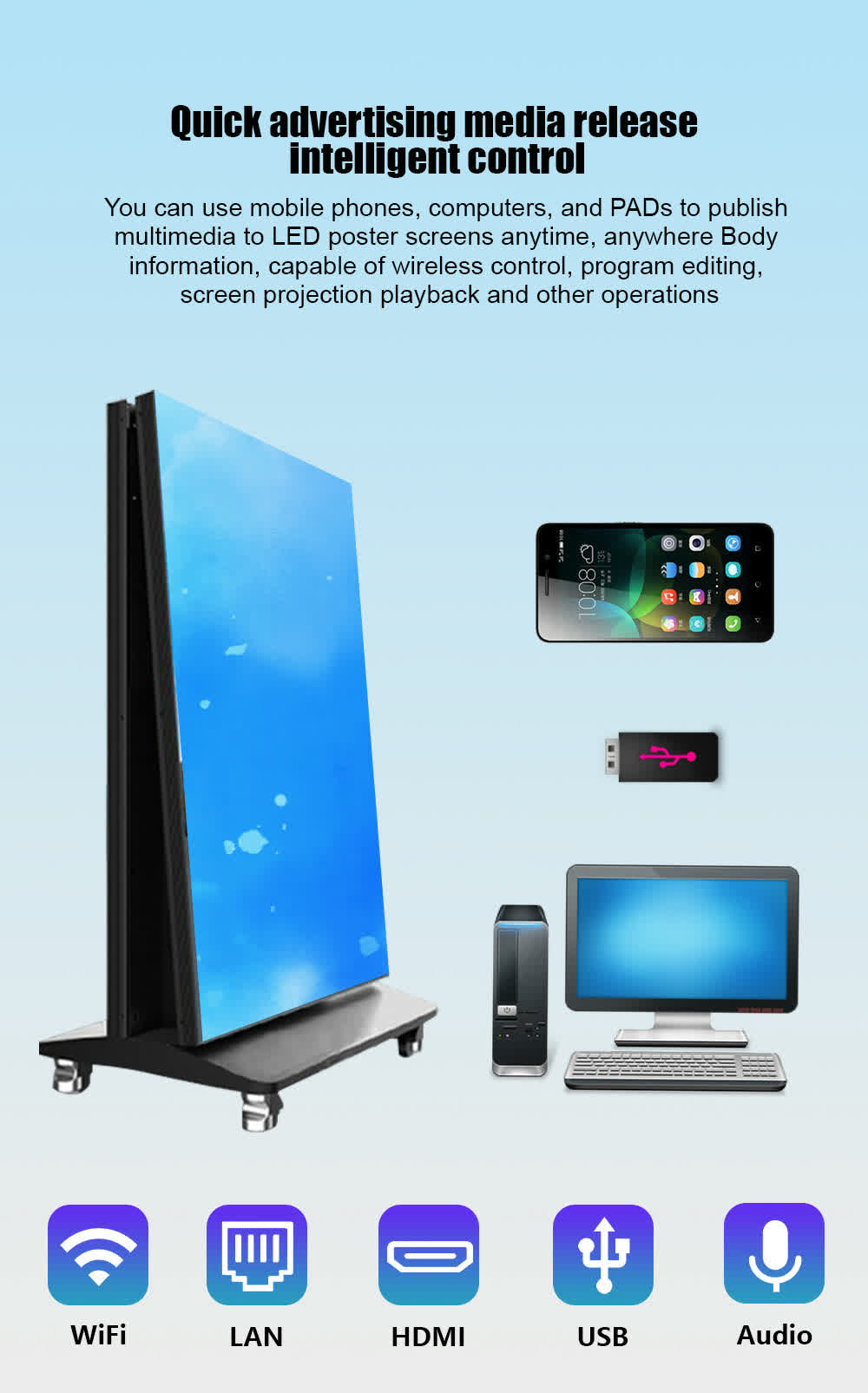

Push content from your
phone, PAD or computer.
Publish multimedia anytime, anywhere over WiFi, LAN, HDMI or USB — wireless control, program editing and screen projection playback, no dedicated operator required.
Ready out of the box

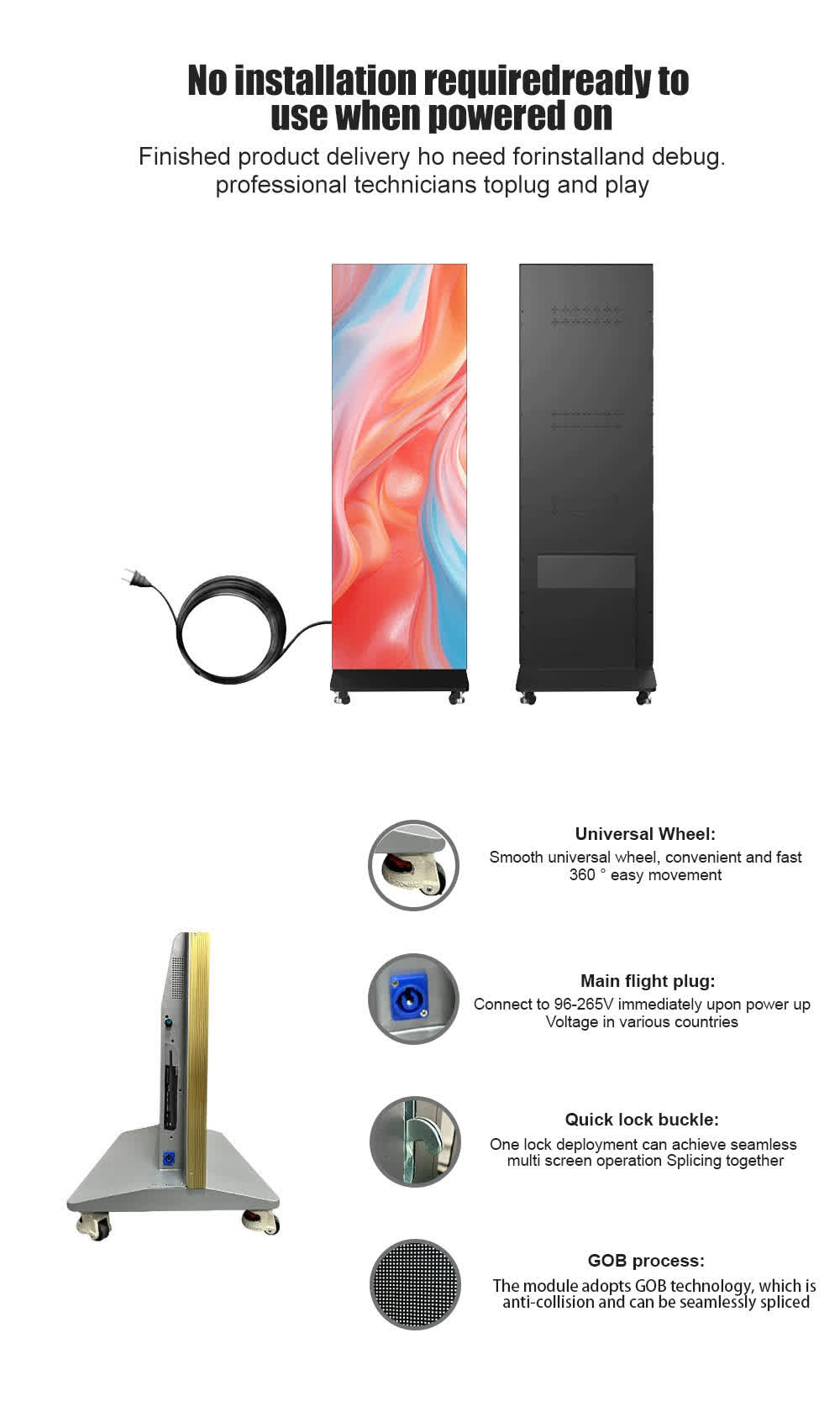

No installation
required.
Finished product delivery — plug and play, no professional install needed. A main flight plug rated for 96–265V works in any country, a quick-lock buckle handles seamless multi-screen splicing, and the build is anti-collision GOB construction throughout.
Getting it to site
Packed to travel.

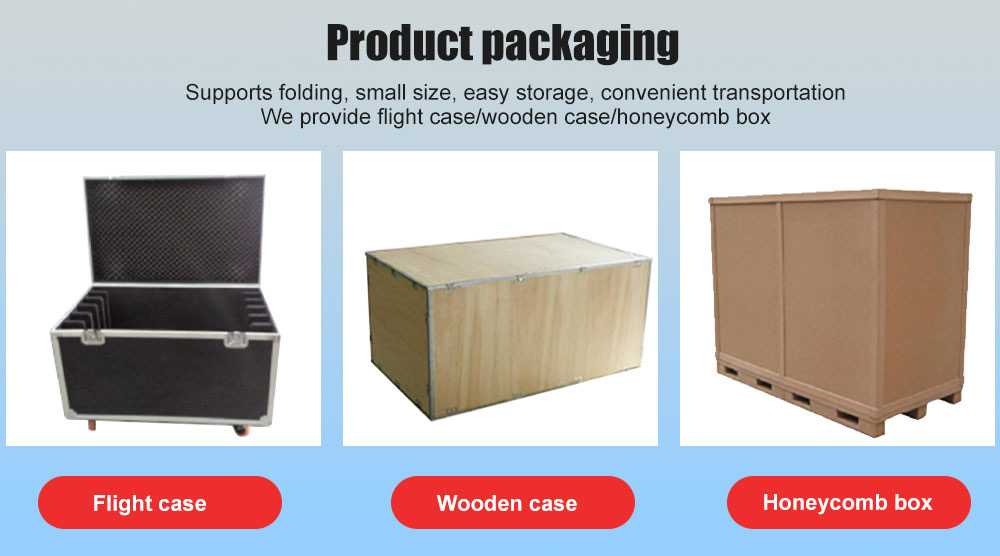

Folds down small for easy storage and transport. Available in flight case, wooden case, or honeycomb box packaging.
Full specifications
Product parameters.
| Spec | CF1.25 | CF1.53 | CF1.86 | CF2.5 |
|---|---|---|---|---|
| Pixel Pitch | 1.25 | 1.538 | 1.86 | 2.5 |
| LED Configuration | SMD1010 | SMD1212 | SMD1515 | SMD2121 |
| Pixel Density | 640,000 dots/m² | 422,750 dots/m² | 284,444 dots/m² | 160,000 dots/m² |
| Module Size | 320 × 160mm | |||
| Module Resolution | 256×128dot | 208×104dot | 172×86dot | 128×64dot |
| Cabinet Size | 2050 × 648mm | |||
| Cabinet Resolution | 512×1536dot | 416×1248dot | 344×1032dot | 256×768dot |
| Cabinet Weight | 43kg | |||
| Brightness Level | >600CD/m² | |||
| Viewing Angle (H/V) | 160° / 160° | |||
| View Distance | 1m | 2m | 3m | 5m |
| Gray Scale | 16-bit | |||
| Color Variety | 16.7M | |||
| Brightness Adjustment | 0–100 levels | |||
| Max. Power Consumption | 360W/m² | |||
| Avg. Power Consumption | 120W/m² | |||
| Scan / Drive Mode | 1/32S | |||
| Refresh Frequency | >3840Hz | |||
| Input Signal | Network cable, USB, WiFi, 4G | |||
| Operating Power | AC100–240V, 50/60Hz | |||
| Operating Temperature | -20°C to +50°C | |||
| Operating Humidity | 10–95% RH | |||
Tell us the venue and the date. We will size the wall and quote it within one business day.
